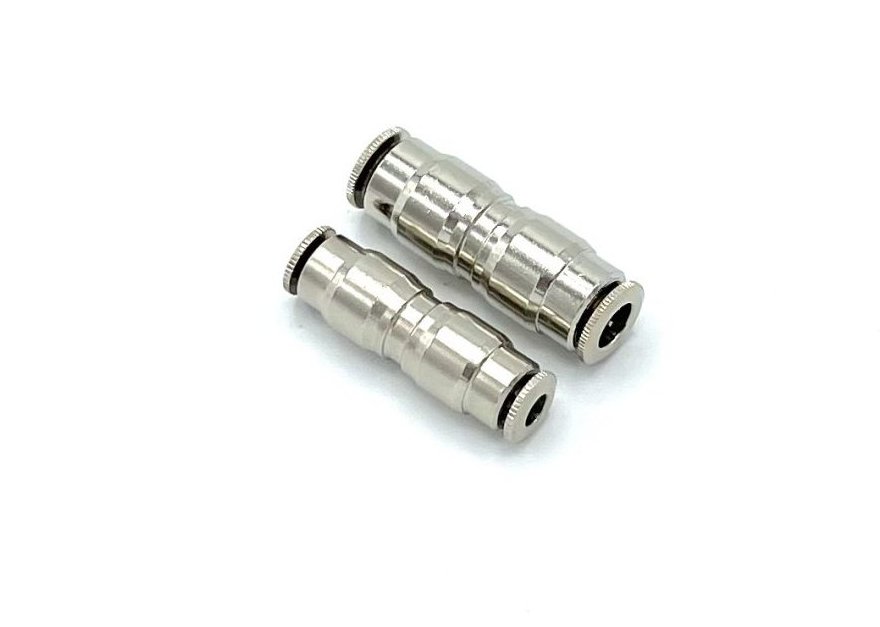

STRAIGHT PUSH-IN CONNECTOR (150 bar)

Material: Brass (nickel plated)

Coupling is equipped with HNBR o-ring

Maximum pressure with liquids: 150 bar
Maximum pressure with air: 30 bar

Temperature range:
Min -30° / Max +150°

Threads:
Tapered gas in conformity with ISO7.1, BS21, DIN2999
Metric tapered in conformity with UNI 7707

Connecting hoses:
plastic hoses: PA6, PA66 for high pressure
PA11, PA12, polyethylene, polyurethane PEF, PTFE.

string(112) "https://www.hydynamic.com/wp-content/uploads/product_pdfs/push-in-fitting/straight-push-in-connector-150-bar.pdf"
string(135) "/home/hydynamic/domains/hydynamic.nl/public_html/wp-content/uploads/product_pdfs/push-in-fitting/straight-push-in-connector-150-bar.pdf"

Variations:

Partnr PA PIPE L D
2835-3000-0400 4 35 11 Do a quotationarray(4) { ["pa_bestelnummer"]=> string(17) "2835-3000-0400-en" ["pa-leiding"]=> string(1) "4" ["l"]=> string(2) "35" ["pa_d"]=> string(5) "11-en" }
2835-3000-0600 6 35 13 Do a quotationarray(4) { ["pa_bestelnummer"]=> string(17) "2835-3000-0600-en" ["pa-leiding"]=> string(1) "6" ["l"]=> string(2) "35" ["pa_d"]=> string(5) "13-en" }
