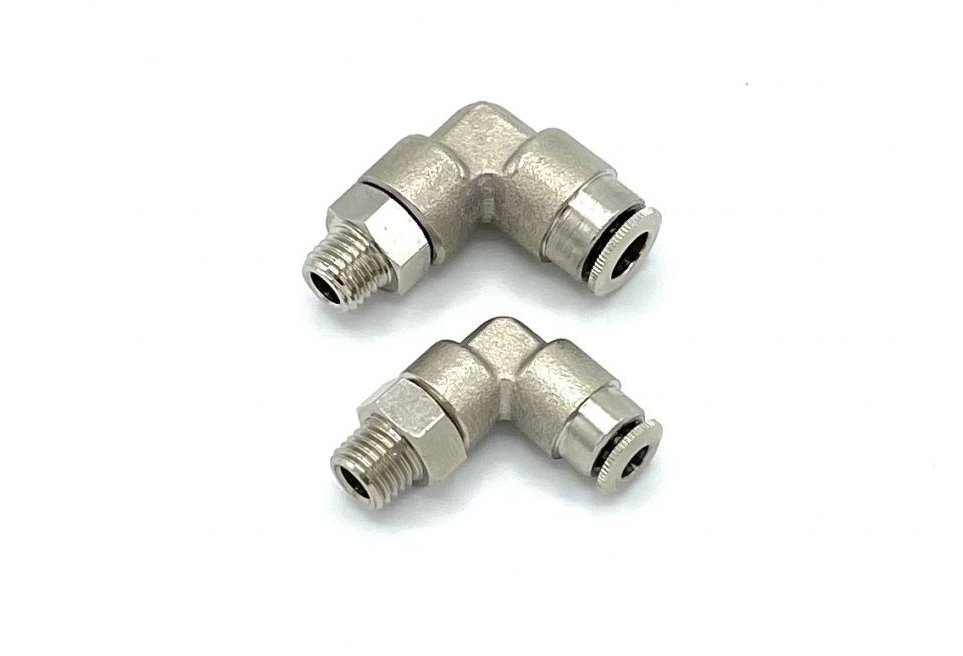

ELBOW PUSH-IN FITTING ROTATABLE (150 bar)

Material: Brass (nickel plated)

Coupling is equipped with HNBR o-ring

Maximum pressure with liquids: 150 bar
Maximum pressure with air: 30 bar

Temperature range:
Min -30° / Max +150°

Threads:
Tapered gas in conformity with ISO7.1, BS21, DIN2999
Metric tapered in conformity with UNI 7707

Connecting hoses:
plastic hoses: PA6, PA66 for high pressure
PA11, PA12, polyethylene, polyurethane PEF, PTFE.



string(117) "https://www.hydynamic.com/wp-content/uploads/product_pdfs/push-in-fitting/elbow-push-in-fitting-rotatable-150-bar.pdf"
string(140) "/home/hydynamic/domains/hydynamic.nl/public_html/wp-content/uploads/product_pdfs/push-in-fitting/elbow-push-in-fitting-rotatable-150-bar.pdf"

Variations:

Partnr PA PIPE G L1 L2 L3 SW1 SW2 D
2837-3000-0406 4 M6x1 18 22,5 6 8 11 10,5 Do a quotationarray(9) { ["pa_bestelnummer"]=> string(17) "2837-3000-0406-en" ["pa-leiding"]=> string(1) "4" ["pa_g"]=> string(7) "m6x1-en" ["l1"]=> string(2) "18" ["l2"]=> string(4) "22,5" ["l3"]=> string(1) "6" ["pa_sw1"]=> string(4) "8-en" ["sw2"]=> string(2) "11" ["d"]=> string(4) "10,5" }
2837-3000-0408 4 M8x1 18 22,5 6 8 11 10,5 Do a quotationarray(9) { ["pa_bestelnummer"]=> string(17) "2837-3000-0408-en" ["pa-leiding"]=> string(1) "4" ["pa_g"]=> string(7) "m8x1-en" ["l1"]=> string(2) "18" ["l2"]=> string(4) "22,5" ["l3"]=> string(1) "6" ["pa_sw1"]=> string(4) "8-en" ["sw2"]=> string(2) "11" ["d"]=> string(4) "10,5" }
2837-3000-0409 4 M8x1,25 18 26,5 7 8 11 10,5 Do a quotationarray(9) { ["pa_bestelnummer"]=> string(17) "2837-3000-0409-en" ["pa-leiding"]=> string(1) "4" ["pa_g"]=> string(9) "m8x125-en" ["l1"]=> string(2) "18" ["l2"]=> string(4) "26,5" ["l3"]=> string(1) "7" ["pa_sw1"]=> string(4) "8-en" ["sw2"]=> string(2) "11" ["d"]=> string(4) "10,5" }
2837-3000-0410 4 M10x1 18 22,5 6,5 8 11 10,5 Do a quotationarray(9) { ["pa_bestelnummer"]=> string(17) "2837-3000-0410-en" ["pa-leiding"]=> string(1) "4" ["pa_g"]=> string(8) "m10x1-en" ["l1"]=> string(2) "18" ["l2"]=> string(4) "22,5" ["l3"]=> string(3) "6,5" ["pa_sw1"]=> string(4) "8-en" ["sw2"]=> string(2) "11" ["d"]=> string(4) "10,5" }
2837-3000-0411 4 M10x1,5 18 26,5 7,5 8 11 10,5 Do a quotationarray(9) { ["pa_bestelnummer"]=> string(17) "2837-3000-0411-en" ["pa-leiding"]=> string(1) "4" ["pa_g"]=> string(9) "m10x15-en" ["l1"]=> string(2) "18" ["l2"]=> string(4) "26,5" ["l3"]=> string(3) "7,5" ["pa_sw1"]=> string(4) "8-en" ["sw2"]=> string(2) "11" ["d"]=> string(4) "10,5" }
2837-3100-0402 4 R1/8 18 24 7,5 8 11 10,5 Do a quotationarray(9) { ["pa_bestelnummer"]=> string(17) "2837-3100-0402-en" ["pa-leiding"]=> string(1) "4" ["pa_g"]=> string(7) "r1-8-en" ["l1"]=> string(2) "18" ["l2"]=> string(2) "24" ["l3"]=> string(3) "7,5" ["pa_sw1"]=> string(4) "8-en" ["sw2"]=> string(2) "11" ["d"]=> string(4) "10,5" }
2837-3100-0404 4 R1/4 18 26,5 11 8 14 10,5 Do a quotationarray(9) { ["pa_bestelnummer"]=> string(17) "2837-3100-0404-en" ["pa-leiding"]=> string(1) "4" ["pa_g"]=> string(7) "r1-4-en" ["l1"]=> string(2) "18" ["l2"]=> string(4) "26,5" ["l3"]=> string(2) "11" ["pa_sw1"]=> string(4) "8-en" ["sw2"]=> string(2) "14" ["d"]=> string(4) "10,5" }
2837-3000-0606 6 M6x1 21 25,5 6 10 11 13 Do a quotationarray(9) { ["pa_bestelnummer"]=> string(17) "2837-3000-0606-en" ["pa-leiding"]=> string(1) "6" ["pa_g"]=> string(7) "m6x1-en" ["l1"]=> string(2) "21" ["l2"]=> string(4) "25,5" ["l3"]=> string(1) "6" ["pa_sw1"]=> string(5) "10-en" ["sw2"]=> string(2) "11" ["d"]=> string(2) "13" }
2837-3000-0608 6 M8x1 21 25,5 6 10 11 13 Do a quotationarray(9) { ["pa_bestelnummer"]=> string(17) "2837-3000-0608-en" ["pa-leiding"]=> string(1) "6" ["pa_g"]=> string(7) "m8x1-en" ["l1"]=> string(2) "21" ["l2"]=> string(4) "25,5" ["l3"]=> string(1) "6" ["pa_sw1"]=> string(5) "10-en" ["sw2"]=> string(2) "11" ["d"]=> string(2) "13" }
2837-3000-0609 6 M8x1,25 21 26,5 7 10 11 13 Do a quotationarray(9) { ["pa_bestelnummer"]=> string(17) "2837-3000-0609-en" ["pa-leiding"]=> string(1) "6" ["pa_g"]=> string(9) "m8x125-en" ["l1"]=> string(2) "21" ["l2"]=> string(4) "26,5" ["l3"]=> string(1) "7" ["pa_sw1"]=> string(5) "10-en" ["sw2"]=> string(2) "11" ["d"]=> string(2) "13" }
2837-3000-0610 6 M10x1 21 22,5 6,5 10 11 13 Do a quotationarray(9) { ["pa_bestelnummer"]=> string(17) "2837-3000-0610-en" ["pa-leiding"]=> string(1) "6" ["pa_g"]=> string(8) "m10x1-en" ["l1"]=> string(2) "21" ["l2"]=> string(4) "22,5" ["l3"]=> string(3) "6,5" ["pa_sw1"]=> string(5) "10-en" ["sw2"]=> string(2) "11" ["d"]=> string(2) "13" }
2837-3000-0611 6 M10x1,5 18 27 7,5 10 11 13 Do a quotationarray(9) { ["pa_bestelnummer"]=> string(17) "2837-3000-0611-en" ["pa-leiding"]=> string(1) "6" ["pa_g"]=> string(9) "m10x15-en" ["l1"]=> string(2) "18" ["l2"]=> string(2) "27" ["l3"]=> string(3) "7,5" ["pa_sw1"]=> string(5) "10-en" ["sw2"]=> string(2) "11" ["d"]=> string(2) "13" }
2837-3100-0602 6 R1/8 21 27 7,5 10 11 13 Do a quotationarray(9) { ["pa_bestelnummer"]=> string(17) "2837-3100-0602-en" ["pa-leiding"]=> string(1) "6" ["pa_g"]=> string(7) "r1-8-en" ["l1"]=> string(2) "21" ["l2"]=> string(2) "27" ["l3"]=> string(3) "7,5" ["pa_sw1"]=> string(5) "10-en" ["sw2"]=> string(2) "11" ["d"]=> string(2) "13" }
2837-3100-0604 6 R1/4 18 30 11 10 14 13 Do a quotationarray(9) { ["pa_bestelnummer"]=> string(17) "2837-3100-0604-en" ["pa-leiding"]=> string(1) "6" ["pa_g"]=> string(7) "r1-4-en" ["l1"]=> string(2) "18" ["l2"]=> string(2) "30" ["l3"]=> string(2) "11" ["pa_sw1"]=> string(5) "10-en" ["sw2"]=> string(2) "14" ["d"]=> string(2) "13" }
