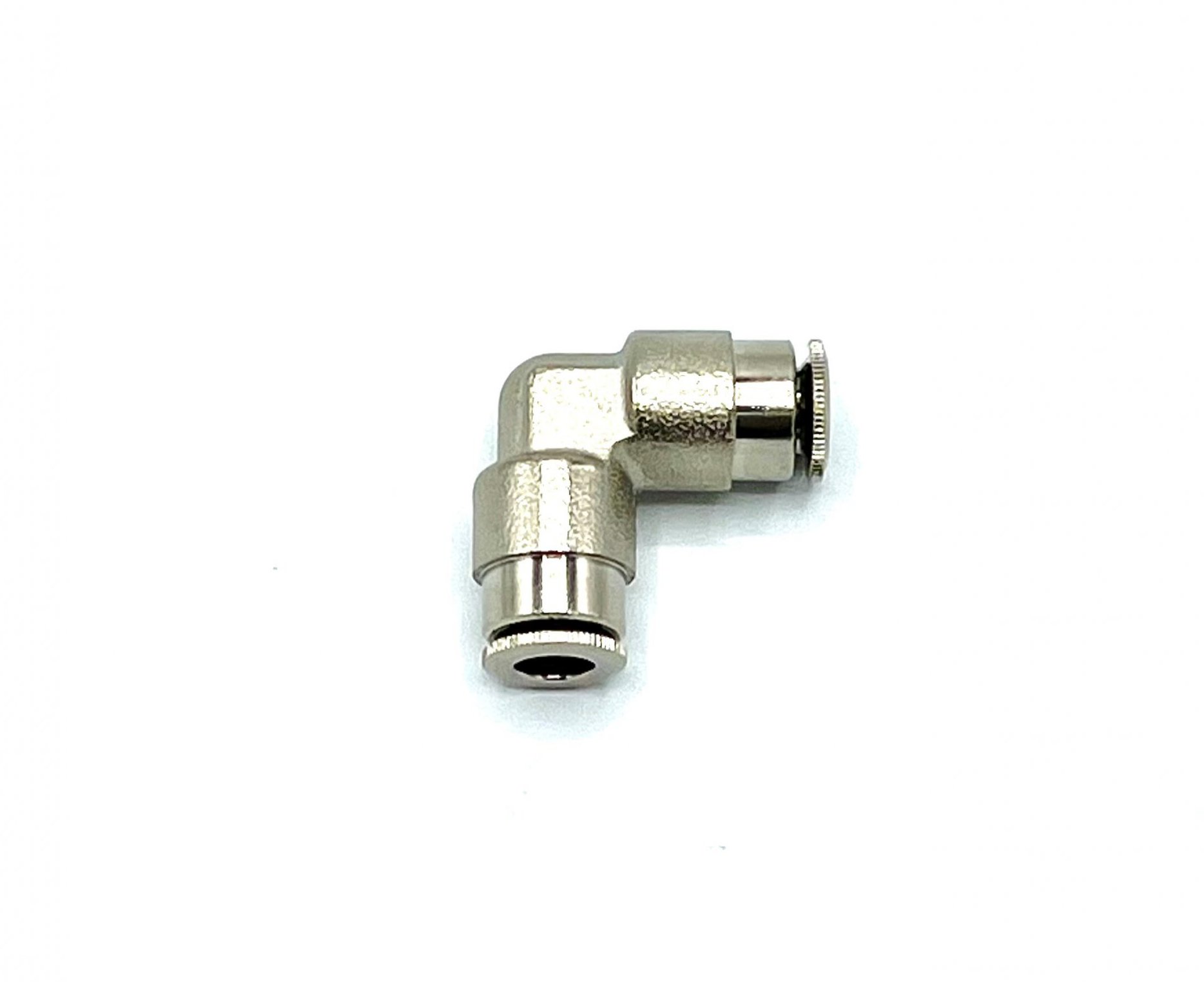

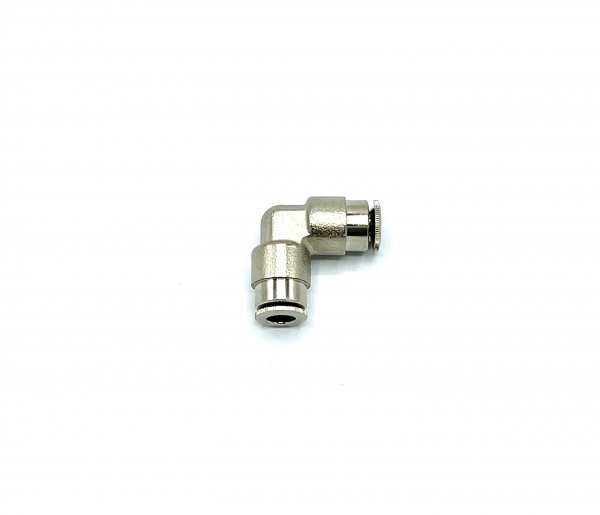

PUSH-IN CONNECTOR W (150 bar)

Material: Brass (nickel plated)

Coupling is equipped with HNBR o-ring

Maximum pressure with liquids: 150 bar
Maximum pressure with air: 30 bar

Temperature range:
Min -30° / Max +150°

Threads:
Tapered gas in conformity with ISO7.1, BS21, DIN2999
Metric tapered in conformity with UNI 7707

Connecting hoses:
plastic hoses: PA6, PA66 for high pressure
PA11, PA12, polyethylene, polyurethane PEF, PTFE.

string(105) "https://www.hydynamic.com/wp-content/uploads/product_pdfs/push-in-fitting/push-in-connector-w-150-bar.pdf"
string(128) "/home/hydynamic/domains/hydynamic.nl/public_html/wp-content/uploads/product_pdfs/push-in-fitting/push-in-connector-w-150-bar.pdf"

Variations:

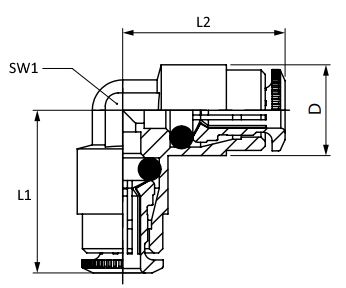

Partnr PA PIPE L1 L2 SW1 D
2836-3000-0400 4 18 18 8 10,5 Do a quotationarray(6) { ["pa_bestelnummer"]=> string(17) "2836-3000-0400-en" ["pa-leiding"]=> string(1) "4" ["pa_l1"]=> string(5) "18-en" ["pa_l2"]=> string(5) "18-en" ["sw1"]=> string(1) "8" ["pa_d"]=> string(6) "105-en" }
2836-3000-0600 6 21 21 10 13 Do a quotationarray(6) { ["pa_bestelnummer"]=> string(17) "2836-3000-0600-en" ["pa-leiding"]=> string(1) "6" ["pa_l1"]=> string(5) "21-en" ["pa_l2"]=> string(5) "21-en" ["sw1"]=> string(2) "10" ["pa_d"]=> string(5) "13-en" }
