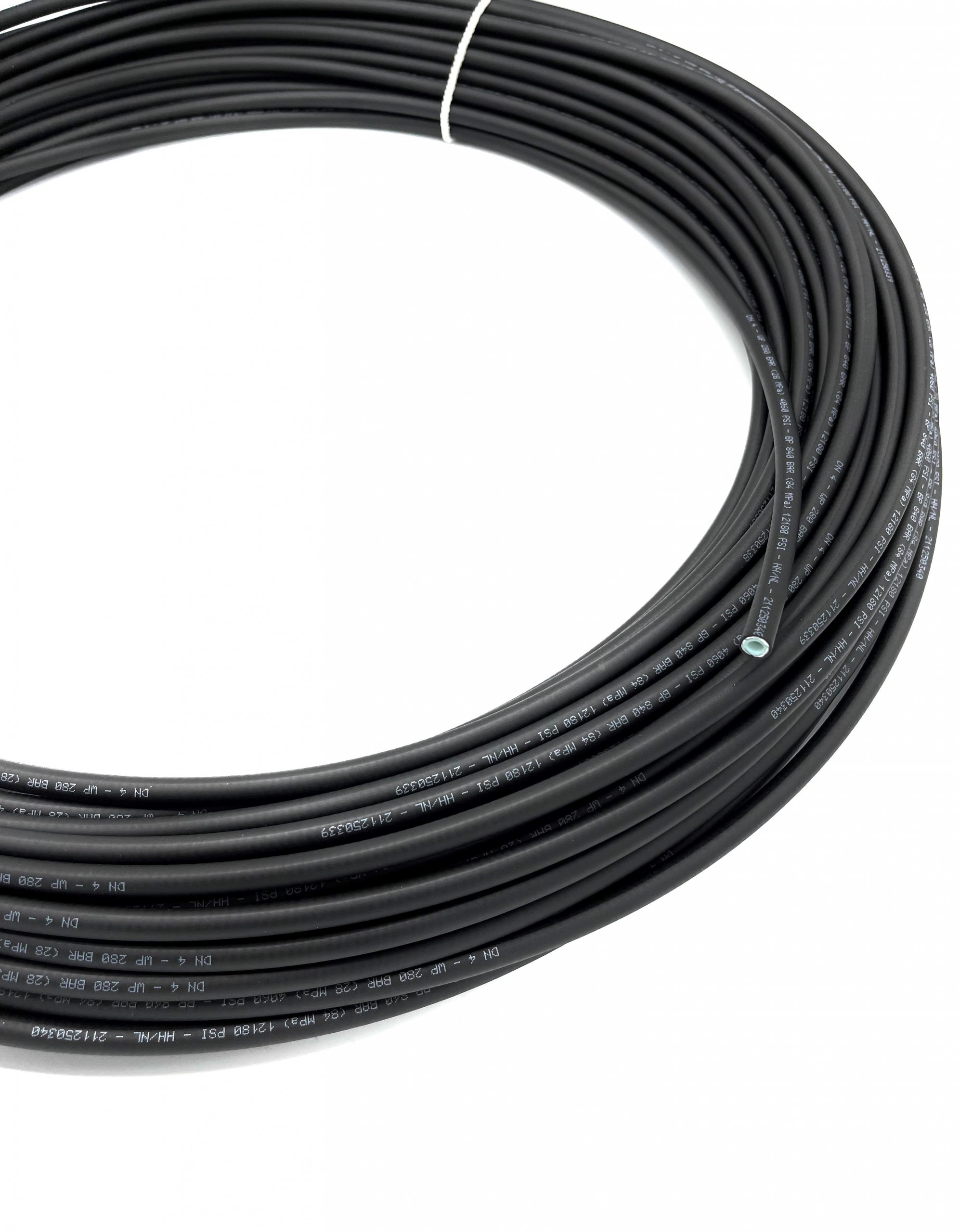

HIGH PRESSURE HOSE 840 BAR

Application

This hose is used for lubrication applications within industrial, manual or automated (centralized) lubrication systems.

Grease filled

If desired, we can fill these lubrication hoses with NLGI 2 grease. This will save you a lot of time during the assembly of the hoses!

Info

The hose has a static pressure of 280 bar and a burst pressure of 840 bar.

PDF specification sheets:

Technical specification sheet high pressure hoses unfilled

Technical specification sheet high pressure hoses grease filled



string(94) "https://www.hydynamic.com/wp-content/uploads/product_pdfs/hoses/high-pressure-hose-840-bar.pdf"
string(117) "/home/hydynamic/domains/hydynamic.nl/public_html/wp-content/uploads/product_pdfs/hoses/high-pressure-hose-840-bar.pdf"

Variations:

Partnr D1 D2 Static pressure Burst pressure Verpakkingseenheid Grease-filled
0116-0003-0400 4,0 8,6 280 bar 840 bar 50m Empty Do a quotationarray(7) { ["pa_bestelnummer"]=> string(17) "0116-0003-0400-en" ["d1"]=> string(3) "4,0" ["d2"]=> string(3) "8,6" ["statische-druk"]=> string(7) "280 bar" ["barst-druk"]=> string(7) "840 bar" ["pa_verpakkingseenheid"]=> string(6) "50m-en" ["vetgevuld"]=> string(5) "Empty" }
0116-0003-0402 4,0 8,6 280 bar 840 bar 100m Empty Do a quotationarray(7) { ["pa_bestelnummer"]=> string(17) "0116-0003-0402-en" ["d1"]=> string(3) "4,0" ["d2"]=> string(3) "8,6" ["statische-druk"]=> string(7) "280 bar" ["barst-druk"]=> string(7) "840 bar" ["pa_verpakkingseenheid"]=> string(7) "100m-en" ["vetgevuld"]=> string(5) "Empty" }
0116-0003-0403 4,0 8,6 280 bar 840 bar 200m Empty Do a quotationarray(7) { ["pa_bestelnummer"]=> string(17) "0116-0003-0403-en" ["d1"]=> string(3) "4,0" ["d2"]=> string(3) "8,6" ["statische-druk"]=> string(7) "280 bar" ["barst-druk"]=> string(7) "840 bar" ["pa_verpakkingseenheid"]=> string(7) "200m-en" ["vetgevuld"]=> string(5) "Empty" }
0116-0003-0600 6,3 11,3 280 bar 840 bar 50m Empty Do a quotationarray(7) { ["pa_bestelnummer"]=> string(17) "0116-0003-0600-en" ["d1"]=> string(3) "6,3" ["d2"]=> string(4) "11,3" ["statische-druk"]=> string(7) "280 bar" ["barst-druk"]=> string(7) "840 bar" ["pa_verpakkingseenheid"]=> string(6) "50m-en" ["vetgevuld"]=> string(5) "Empty" }
0116-0002-0400 4,0 8,6 280 bar 840 bar 50m Grease-filled NLGI 2 Do a quotationarray(7) { ["pa_bestelnummer"]=> string(17) "0116-0002-0400-en" ["d1"]=> string(3) "4,0" ["d2"]=> string(3) "8,6" ["statische-druk"]=> string(7) "280 bar" ["barst-druk"]=> string(7) "840 bar" ["pa_verpakkingseenheid"]=> string(6) "50m-en" ["vetgevuld"]=> string(20) "Grease-filled NLGI 2" }
0116-0001-0600 6,3 11,3 280 bar 840 bar 50m Grease-filled NLGI 2 Do a quotationarray(7) { ["pa_bestelnummer"]=> string(17) "0116-0001-0600-en" ["d1"]=> string(3) "6,3" ["d2"]=> string(4) "11,3" ["statische-druk"]=> string(7) "280 bar" ["barst-druk"]=> string(7) "840 bar" ["pa_verpakkingseenheid"]=> string(6) "50m-en" ["vetgevuld"]=> string(20) "Grease-filled NLGI 2" }
