STRAIGHT SCREW FITTING (GE)

For connecting and attaching central lubrication pipes and hoses to metric and metric / BSP connections of your central lubrication system. These quick couplings are fully standardized according to DIN 2353 and are available in BEKA, LINCOLN and SKF variants.

See the table below for all available variants.
Material: Zinc-Nickel, stainless steel 316Ti

string(109) "https://www.hydynamic.com/wp-content/uploads/product_pdfs/cutting-ring-fittings/straight-screw-fitting-ge.pdf"
string(132) "/home/hydynamic/domains/hydynamic.nl/public_html/wp-content/uploads/product_pdfs/cutting-ring-fittings/straight-screw-fitting-ge.pdf"

Variations:

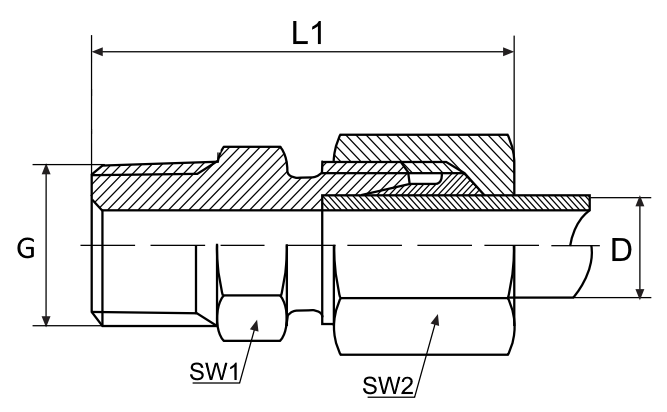

Partnr Omschrijving D Serie G SW1 SW2 L1 Material
0413-0004-0406 GE04 LL M6x0,75 4 LL M6x0.75 con 9 10 26 Zinc-nickel Do a quotationarray(9) { ["pa_bestelnummer"]=> string(17) "0413-0004-0406-en" ["omschrijving"]=> string(15) "GE04 LL M6x0,75" ["pa_d"]=> string(4) "4-en" ["pa_serie"]=> string(5) "ll-en" ["g"]=> string(11) "M6x0.75 con" ["pa_sw1"]=> string(4) "9-en" ["pa_sw2"]=> string(5) "10-en" ["l1"]=> string(2) "26" ["pa_materiaal"]=> string(14) "zinc-nickel-en" }
0413-0003-0406 GE04 LL M6x1 4 LL M6x1 con 9 10 26 Zinc-nickel Do a quotationarray(9) { ["pa_bestelnummer"]=> string(17) "0413-0003-0406-en" ["omschrijving"]=> string(12) "GE04 LL M6x1" ["pa_d"]=> string(4) "4-en" ["pa_serie"]=> string(5) "ll-en" ["g"]=> string(8) "M6x1 con" ["pa_sw1"]=> string(4) "9-en" ["pa_sw2"]=> string(5) "10-en" ["l1"]=> string(2) "26" ["pa_materiaal"]=> string(14) "zinc-nickel-en" }
0413-0007-0406 GE04 LL M6x1 KORT 4 LL M6x1 con 9 10 24 Zinc-nickel Do a quotationarray(9) { ["pa_bestelnummer"]=> string(17) "0413-0007-0406-en" ["omschrijving"]=> string(17) "GE04 LL M6x1 KORT" ["pa_d"]=> string(4) "4-en" ["pa_serie"]=> string(5) "ll-en" ["g"]=> string(8) "M6x1 con" ["pa_sw1"]=> string(4) "9-en" ["pa_sw2"]=> string(5) "10-en" ["l1"]=> string(2) "24" ["pa_materiaal"]=> string(14) "zinc-nickel-en" }
0413-0003-0408 GE04 LL M8X1 4 LL M8x1 con 10 10 26 Zinc-nickel Do a quotationarray(9) { ["pa_bestelnummer"]=> string(17) "0413-0003-0408-en" ["omschrijving"]=> string(12) "GE04 LL M8X1" ["pa_d"]=> string(4) "4-en" ["pa_serie"]=> string(5) "ll-en" ["g"]=> string(8) "M8x1 con" ["pa_sw1"]=> string(5) "10-en" ["pa_sw2"]=> string(5) "10-en" ["l1"]=> string(2) "26" ["pa_materiaal"]=> string(14) "zinc-nickel-en" }
0413-0004-0408 GE04 LL M8x1,25 4 LL M8x1,25 con 10 10 26 Zinc-nickel Do a quotationarray(9) { ["pa_bestelnummer"]=> string(17) "0413-0004-0408-en" ["omschrijving"]=> string(15) "GE04 LL M8x1,25" ["pa_d"]=> string(4) "4-en" ["pa_serie"]=> string(5) "ll-en" ["g"]=> string(11) "M8x1,25 con" ["pa_sw1"]=> string(5) "10-en" ["pa_sw2"]=> string(5) "10-en" ["l1"]=> string(2) "26" ["pa_materiaal"]=> string(14) "zinc-nickel-en" }
0413-0003-0410 GE04 LL M10X1 4 LL M10x1 con 11 10 26 Zinc-nickel Do a quotationarray(9) { ["pa_bestelnummer"]=> string(17) "0413-0003-0410-en" ["omschrijving"]=> string(13) "GE04 LL M10X1" ["pa_d"]=> string(4) "4-en" ["pa_serie"]=> string(5) "ll-en" ["g"]=> string(9) "M10x1 con" ["pa_sw1"]=> string(5) "11-en" ["pa_sw2"]=> string(5) "10-en" ["l1"]=> string(2) "26" ["pa_materiaal"]=> string(14) "zinc-nickel-en" }
0413-0003-0508 GE05 LL M8x1 5 LL M8x1 con 10 10 26 Zinc-nickel Do a quotationarray(9) { ["pa_bestelnummer"]=> string(17) "0413-0003-0508-en" ["omschrijving"]=> string(12) "GE05 LL M8x1" ["pa_d"]=> string(4) "5-en" ["pa_serie"]=> string(5) "ll-en" ["g"]=> string(8) "M8x1 con" ["pa_sw1"]=> string(5) "10-en" ["pa_sw2"]=> string(5) "10-en" ["l1"]=> string(2) "26" ["pa_materiaal"]=> string(14) "zinc-nickel-en" }
0413-0003-0606 GE06 LL M6x1 6 LL M6x1 con 11 12 26 Zinc-nickel Do a quotationarray(9) { ["pa_bestelnummer"]=> string(17) "0413-0003-0606-en" ["omschrijving"]=> string(12) "GE06 LL M6x1" ["pa_d"]=> string(4) "6-en" ["pa_serie"]=> string(5) "ll-en" ["g"]=> string(8) "M6x1 con" ["pa_sw1"]=> string(5) "11-en" ["pa_sw2"]=> string(5) "12-en" ["l1"]=> string(2) "26" ["pa_materiaal"]=> string(14) "zinc-nickel-en" }
0413-0003-0608 GE06 LL M8x1 6 LL M8x1 con 11 12 26 Zinc-nickel Do a quotationarray(9) { ["pa_bestelnummer"]=> string(17) "0413-0003-0608-en" ["omschrijving"]=> string(12) "GE06 LL M8x1" ["pa_d"]=> string(4) "6-en" ["pa_serie"]=> string(5) "ll-en" ["g"]=> string(8) "M8x1 con" ["pa_sw1"]=> string(5) "11-en" ["pa_sw2"]=> string(5) "12-en" ["l1"]=> string(2) "26" ["pa_materiaal"]=> string(14) "zinc-nickel-en" }
0413-0004-0608 GE06 LL M8x1,25 6 LL M8x1,25 con 11 12 26 Zinc-nickel Do a quotationarray(9) { ["pa_bestelnummer"]=> string(17) "0413-0004-0608-en" ["omschrijving"]=> string(15) "GE06 LL M8x1,25" ["pa_d"]=> string(4) "6-en" ["pa_serie"]=> string(5) "ll-en" ["g"]=> string(11) "M8x1,25 con" ["pa_sw1"]=> string(5) "11-en" ["pa_sw2"]=> string(5) "12-en" ["l1"]=> string(2) "26" ["pa_materiaal"]=> string(14) "zinc-nickel-en" }
0413-0003-0610 GE06 LL M10x1 6 LL M10x1 con 11 12 26 Zinc-nickel Do a quotationarray(9) { ["pa_bestelnummer"]=> string(17) "0413-0003-0610-en" ["omschrijving"]=> string(13) "GE06 LL M10x1" ["pa_d"]=> string(4) "6-en" ["pa_serie"]=> string(5) "ll-en" ["g"]=> string(9) "M10x1 con" ["pa_sw1"]=> string(5) "11-en" ["pa_sw2"]=> string(5) "12-en" ["l1"]=> string(2) "26" ["pa_materiaal"]=> string(14) "zinc-nickel-en" }
0413-0103-0402 GE04 LL R1/8 4 LL R1/8 BSP con 11 10 26 Zinc-nickel Do a quotationarray(9) { ["pa_bestelnummer"]=> string(17) "0413-0103-0402-en" ["omschrijving"]=> string(12) "GE04 LL R1/8" ["pa_d"]=> string(4) "4-en" ["pa_serie"]=> string(5) "ll-en" ["g"]=> string(12) "R1/8 BSP con" ["pa_sw1"]=> string(5) "11-en" ["pa_sw2"]=> string(5) "10-en" ["l1"]=> string(2) "26" ["pa_materiaal"]=> string(14) "zinc-nickel-en" }
0413-0107-0402 GE04 LL R1/8 CYL 4 LL R1/8 BSP cyl 14 10 28 Zinc-nickel Do a quotationarray(9) { ["pa_bestelnummer"]=> string(17) "0413-0107-0402-en" ["omschrijving"]=> string(16) "GE04 LL R1/8 CYL" ["pa_d"]=> string(4) "4-en" ["pa_serie"]=> string(5) "ll-en" ["g"]=> string(12) "R1/8 BSP cyl" ["pa_sw1"]=> string(5) "14-en" ["pa_sw2"]=> string(5) "10-en" ["l1"]=> string(2) "28" ["pa_materiaal"]=> string(14) "zinc-nickel-en" }
0413-0103-0502 GE05 LL R1/8 5 LL R1/8 BSP con 11 10 26 Zinc-nickel Do a quotationarray(9) { ["pa_bestelnummer"]=> string(17) "0413-0103-0502-en" ["omschrijving"]=> string(12) "GE05 LL R1/8" ["pa_d"]=> string(4) "5-en" ["pa_serie"]=> string(5) "ll-en" ["g"]=> string(12) "R1/8 BSP con" ["pa_sw1"]=> string(5) "11-en" ["pa_sw2"]=> string(5) "10-en" ["l1"]=> string(2) "26" ["pa_materiaal"]=> string(14) "zinc-nickel-en" }
0413-0103-0602 GE06 LL R1/8 6 LL R1/8 BSP con 11 12 26 Zinc-nickel Do a quotationarray(9) { ["pa_bestelnummer"]=> string(17) "0413-0103-0602-en" ["omschrijving"]=> string(12) "GE06 LL R1/8" ["pa_d"]=> string(4) "6-en" ["pa_serie"]=> string(5) "ll-en" ["g"]=> string(12) "R1/8 BSP con" ["pa_sw1"]=> string(5) "11-en" ["pa_sw2"]=> string(5) "12-en" ["l1"]=> string(2) "26" ["pa_materiaal"]=> string(14) "zinc-nickel-en" }
0413-0104-0602 GE06 LL R1/8 CYL 6 LL R1/8 BSP cyl 14 12 27,5 Zinc-nickel Do a quotationarray(9) { ["pa_bestelnummer"]=> string(17) "0413-0104-0602-en" ["omschrijving"]=> string(16) "GE06 LL R1/8 CYL" ["pa_d"]=> string(4) "6-en" ["pa_serie"]=> string(5) "ll-en" ["g"]=> string(12) "R1/8 BSP cyl" ["pa_sw1"]=> string(5) "14-en" ["pa_sw2"]=> string(5) "12-en" ["l1"]=> string(4) "27,5" ["pa_materiaal"]=> string(14) "zinc-nickel-en" }
0413-0103-0802 GE08 LL R1/8 8 LL R1/8 BSP con 11 14 28 Zinc-nickel Do a quotationarray(9) { ["pa_bestelnummer"]=> string(17) "0413-0103-0802-en" ["omschrijving"]=> string(12) "GE08 LL R1/8" ["pa_d"]=> string(4) "8-en" ["pa_serie"]=> string(5) "ll-en" ["g"]=> string(12) "R1/8 BSP con" ["pa_sw1"]=> string(5) "11-en" ["pa_sw2"]=> string(5) "14-en" ["l1"]=> string(2) "28" ["pa_materiaal"]=> string(14) "zinc-nickel-en" }
0413-0103-0804 GE08 LL R1/4 8 LL R1/4 BSP con 14 14 32,5 Galvanised Do a quotationarray(9) { ["pa_bestelnummer"]=> string(17) "0413-0103-0804-en" ["omschrijving"]=> string(12) "GE08 LL R1/4" ["pa_d"]=> string(4) "8-en" ["pa_serie"]=> string(5) "ll-en" ["g"]=> string(12) "R1/4 BSP con" ["pa_sw1"]=> string(5) "14-en" ["pa_sw2"]=> string(5) "14-en" ["l1"]=> string(4) "32,5" ["pa_materiaal"]=> string(10) "galvanised" }
0413-0003-0810 GE08 LL M10x1 8 LL M10x1 con 12 14 28 Zinc-nickel Do a quotationarray(9) { ["pa_bestelnummer"]=> string(17) "0413-0003-0810-en" ["omschrijving"]=> string(13) "GE08 LL M10x1" ["pa_d"]=> string(4) "8-en" ["pa_serie"]=> string(5) "ll-en" ["g"]=> string(9) "M10x1 con" ["pa_sw1"]=> string(5) "12-en" ["pa_sw2"]=> string(5) "14-en" ["l1"]=> string(2) "28" ["pa_materiaal"]=> string(14) "zinc-nickel-en" }
0413-0123-0604 GE06 LR 1/4 6 L R1/4 BSP cyl 19 14 39 Zinc-nickel Do a quotationarray(9) { ["pa_bestelnummer"]=> string(17) "0413-0123-0604-en" ["omschrijving"]=> string(11) "GE06 LR 1/4" ["pa_d"]=> string(4) "6-en" ["pa_serie"]=> string(4) "l-en" ["g"]=> string(12) "R1/4 BSP cyl" ["pa_sw1"]=> string(5) "19-en" ["pa_sw2"]=> string(5) "14-en" ["l1"]=> string(2) "39" ["pa_materiaal"]=> string(14) "zinc-nickel-en" }
0413-0023-0610 GE06 L M10x1 6 L M10x1 cyl 14 14 34 Zinc-nickel Do a quotationarray(9) { ["pa_bestelnummer"]=> string(17) "0413-0023-0610-en" ["omschrijving"]=> string(12) "GE06 L M10x1" ["pa_d"]=> string(4) "6-en" ["pa_serie"]=> string(4) "l-en" ["g"]=> string(9) "M10x1 cyl" ["pa_sw1"]=> string(5) "14-en" ["pa_sw2"]=> string(5) "14-en" ["l1"]=> string(2) "34" ["pa_materiaal"]=> string(14) "zinc-nickel-en" }
0413-0023-0614 GE06 L M14x1 6 L M14x1 cyl 19 14 39 Zinc-nickel Do a quotationarray(9) { ["pa_bestelnummer"]=> string(17) "0413-0023-0614-en" ["omschrijving"]=> string(12) "GE06 L M14x1" ["pa_d"]=> string(4) "6-en" ["pa_serie"]=> string(4) "l-en" ["g"]=> string(9) "M14x1 cyl" ["pa_sw1"]=> string(5) "19-en" ["pa_sw2"]=> string(5) "14-en" ["l1"]=> string(2) "39" ["pa_materiaal"]=> string(14) "zinc-nickel-en" }
0413-0123-0602 GE06 LR 1/8 6 L R1/8 BSP cyl 14 14 34 Zinc-nickel Do a quotationarray(9) { ["pa_bestelnummer"]=> string(17) "0413-0123-0602-en" ["omschrijving"]=> string(11) "GE06 LR 1/8" ["pa_d"]=> string(4) "6-en" ["pa_serie"]=> string(4) "l-en" ["g"]=> string(12) "R1/8 BSP cyl" ["pa_sw1"]=> string(5) "14-en" ["pa_sw2"]=> string(5) "14-en" ["l1"]=> string(2) "34" ["pa_materiaal"]=> string(14) "zinc-nickel-en" }
0413-0123-0606 GE06 LR 3/8 6 L R3/8 BSP cyl 22 14 40 Zinc-nickel Do a quotationarray(9) { ["pa_bestelnummer"]=> string(17) "0413-0123-0606-en" ["omschrijving"]=> string(11) "GE06 LR 3/8" ["pa_d"]=> string(4) "6-en" ["pa_serie"]=> string(4) "l-en" ["g"]=> string(12) "R3/8 BSP cyl" ["pa_sw1"]=> string(5) "22-en" ["pa_sw2"]=> string(5) "14-en" ["l1"]=> string(2) "40" ["pa_materiaal"]=> string(14) "zinc-nickel-en" }
0413-0123-0802 GE08 LR 1/8 8 L R1/8 BSP cyl 14 17 35 Zinc-nickel Do a quotationarray(9) { ["pa_bestelnummer"]=> string(17) "0413-0123-0802-en" ["omschrijving"]=> string(11) "GE08 LR 1/8" ["pa_d"]=> string(4) "8-en" ["pa_serie"]=> string(4) "l-en" ["g"]=> string(12) "R1/8 BSP cyl" ["pa_sw1"]=> string(5) "14-en" ["pa_sw2"]=> string(5) "17-en" ["l1"]=> string(2) "35" ["pa_materiaal"]=> string(14) "zinc-nickel-en" }
0413-0123-0804 GE08 LR 1/4 8 L R1/4 BSP cyl 19 17 40 Zinc-nickel Do a quotationarray(9) { ["pa_bestelnummer"]=> string(17) "0413-0123-0804-en" ["omschrijving"]=> string(11) "GE08 LR 1/4" ["pa_d"]=> string(4) "8-en" ["pa_serie"]=> string(4) "l-en" ["g"]=> string(12) "R1/4 BSP cyl" ["pa_sw1"]=> string(5) "19-en" ["pa_sw2"]=> string(5) "17-en" ["l1"]=> string(2) "40" ["pa_materiaal"]=> string(14) "zinc-nickel-en" }
0413-0023-0810 GE08 L M10x1 8 L M10x1 cyl 14 16 35 Zinc-nickel Do a quotationarray(9) { ["pa_bestelnummer"]=> string(17) "0413-0023-0810-en" ["omschrijving"]=> string(12) "GE08 L M10x1" ["pa_d"]=> string(4) "8-en" ["pa_serie"]=> string(4) "l-en" ["g"]=> string(9) "M10x1 cyl" ["pa_sw1"]=> string(5) "14-en" ["pa_sw2"]=> string(2) "16" ["l1"]=> string(2) "35" ["pa_materiaal"]=> string(14) "zinc-nickel-en" }
0413-0023-1010 GE10 L M10x1 10 L M10x1 cyl 17 19 35 Zinc-nickel Do a quotationarray(9) { ["pa_bestelnummer"]=> string(17) "0413-0023-1010-en" ["omschrijving"]=> string(12) "GE10 L M10x1" ["pa_d"]=> string(5) "10-en" ["pa_serie"]=> string(4) "l-en" ["g"]=> string(9) "M10x1 cyl" ["pa_sw1"]=> string(5) "17-en" ["pa_sw2"]=> string(5) "19-en" ["l1"]=> string(2) "35" ["pa_materiaal"]=> string(14) "zinc-nickel-en" }
0413-0123-1004 GE10 LR 1/4 10 L R1/4 BSP cyl 19 19 40 Zinc-nickel Do a quotationarray(9) { ["pa_bestelnummer"]=> string(17) "0413-0123-1004-en" ["omschrijving"]=> string(11) "GE10 LR 1/4" ["pa_d"]=> string(5) "10-en" ["pa_serie"]=> string(4) "l-en" ["g"]=> string(12) "R1/4 BSP cyl" ["pa_sw1"]=> string(5) "19-en" ["pa_sw2"]=> string(5) "19-en" ["l1"]=> string(2) "40" ["pa_materiaal"]=> string(14) "zinc-nickel-en" }
0413-0123-1002 GE10 LR 1/8 10 L R1/8 BSP cyl 17 19 36,5 Zinc-nickel Do a quotationarray(9) { ["pa_bestelnummer"]=> string(17) "0413-0123-1002-en" ["omschrijving"]=> string(11) "GE10 LR 1/8" ["pa_d"]=> string(5) "10-en" ["pa_serie"]=> string(4) "l-en" ["g"]=> string(12) "R1/8 BSP cyl" ["pa_sw1"]=> string(5) "17-en" ["pa_sw2"]=> string(5) "19-en" ["l1"]=> string(4) "36,5" ["pa_materiaal"]=> string(14) "zinc-nickel-en" }
0413-2003-0406 GE04 LL M6x1 4 LL M6x1 con 9 10 26 Stainless steel 316TI Do a quotationarray(9) { ["pa_bestelnummer"]=> string(17) "0413-2003-0406-en" ["omschrijving"]=> string(12) "GE04 LL M6x1" ["pa_d"]=> string(4) "4-en" ["pa_serie"]=> string(5) "ll-en" ["g"]=> string(8) "M6x1 con" ["pa_sw1"]=> string(4) "9-en" ["pa_sw2"]=> string(5) "10-en" ["l1"]=> string(2) "26" ["pa_materiaal"]=> string(24) "stainless-steel-316ti-en" }
0413-2003-0408 GE04 LL M8X1 4 LL M8x1 con 10 10 26 Stainless steel 316TI Do a quotationarray(9) { ["pa_bestelnummer"]=> string(17) "0413-2003-0408-en" ["omschrijving"]=> string(12) "GE04 LL M8X1" ["pa_d"]=> string(4) "4-en" ["pa_serie"]=> string(5) "ll-en" ["g"]=> string(8) "M8x1 con" ["pa_sw1"]=> string(5) "10-en" ["pa_sw2"]=> string(5) "10-en" ["l1"]=> string(2) "26" ["pa_materiaal"]=> string(24) "stainless-steel-316ti-en" }
0413-2003-0410 GE04 LL M10X1 4 LL M10x1 con 10 12 26 Stainless steel 316TI Do a quotationarray(9) { ["pa_bestelnummer"]=> string(17) "0413-2003-0410-en" ["omschrijving"]=> string(13) "GE04 LL M10X1" ["pa_d"]=> string(4) "4-en" ["pa_serie"]=> string(5) "ll-en" ["g"]=> string(9) "M10x1 con" ["pa_sw1"]=> string(5) "10-en" ["pa_sw2"]=> string(5) "12-en" ["l1"]=> string(2) "26" ["pa_materiaal"]=> string(24) "stainless-steel-316ti-en" }
0413-2004-0410 GE04 LL M10x1 CYL 4 LL M10x1 cyl 14 10 28 Stainless steel 316TI Do a quotationarray(9) { ["pa_bestelnummer"]=> string(17) "0413-2004-0410-en" ["omschrijving"]=> string(17) "GE04 LL M10x1 CYL" ["pa_d"]=> string(4) "4-en" ["pa_serie"]=> string(5) "ll-en" ["g"]=> string(9) "M10x1 cyl" ["pa_sw1"]=> string(5) "14-en" ["pa_sw2"]=> string(5) "10-en" ["l1"]=> string(2) "28" ["pa_materiaal"]=> string(24) "stainless-steel-316ti-en" }
0413-2103-0402 GE04 LL R1/8 4 LL R1/8 BSP con 11 10 28 Stainless steel 316TI Do a quotationarray(9) { ["pa_bestelnummer"]=> string(17) "0413-2103-0402-en" ["omschrijving"]=> string(12) "GE04 LL R1/8" ["pa_d"]=> string(4) "4-en" ["pa_serie"]=> string(5) "ll-en" ["g"]=> string(12) "R1/8 BSP con" ["pa_sw1"]=> string(5) "11-en" ["pa_sw2"]=> string(5) "10-en" ["l1"]=> string(2) "28" ["pa_materiaal"]=> string(24) "stainless-steel-316ti-en" }
0413-2104-0402 GE04 LL R1/8 CYL 4 LL R1/8 BSP cyl 11 10 28 Stainless steel 316TI Do a quotationarray(9) { ["pa_bestelnummer"]=> string(17) "0413-2104-0402-en" ["omschrijving"]=> string(16) "GE04 LL R1/8 CYL" ["pa_d"]=> string(4) "4-en" ["pa_serie"]=> string(5) "ll-en" ["g"]=> string(12) "R1/8 BSP cyl" ["pa_sw1"]=> string(5) "11-en" ["pa_sw2"]=> string(5) "10-en" ["l1"]=> string(2) "28" ["pa_materiaal"]=> string(24) "stainless-steel-316ti-en" }
0413-2003-0606 GE06 LL M6x1 6 LL M6x1 con 11 12 26 Stainless steel 316TI Do a quotationarray(9) { ["pa_bestelnummer"]=> string(17) "0413-2003-0606-en" ["omschrijving"]=> string(12) "GE06 LL M6x1" ["pa_d"]=> string(4) "6-en" ["pa_serie"]=> string(5) "ll-en" ["g"]=> string(8) "M6x1 con" ["pa_sw1"]=> string(5) "11-en" ["pa_sw2"]=> string(5) "12-en" ["l1"]=> string(2) "26" ["pa_materiaal"]=> string(24) "stainless-steel-316ti-en" }
0413-2003-0608 GE06 LL M8x1 6 LL M8x1 con 11 12 28 Stainless steel 316TI Do a quotationarray(9) { ["pa_bestelnummer"]=> string(17) "0413-2003-0608-en" ["omschrijving"]=> string(12) "GE06 LL M8x1" ["pa_d"]=> string(4) "6-en" ["pa_serie"]=> string(5) "ll-en" ["g"]=> string(8) "M8x1 con" ["pa_sw1"]=> string(5) "11-en" ["pa_sw2"]=> string(5) "12-en" ["l1"]=> string(2) "28" ["pa_materiaal"]=> string(24) "stainless-steel-316ti-en" }
0413-2004-0608 GE06 LL M8x1,25 6 LL M8x1,25 con 11 12 28 Stainless steel 316TI Do a quotationarray(9) { ["pa_bestelnummer"]=> string(17) "0413-2004-0608-en" ["omschrijving"]=> string(15) "GE06 LL M8x1,25" ["pa_d"]=> string(4) "6-en" ["pa_serie"]=> string(5) "ll-en" ["g"]=> string(11) "M8x1,25 con" ["pa_sw1"]=> string(5) "11-en" ["pa_sw2"]=> string(5) "12-en" ["l1"]=> string(2) "28" ["pa_materiaal"]=> string(24) "stainless-steel-316ti-en" }
0413-2003-0610 GE08 LL M10x1 6 LL M10x1 con 11 12 26 Stainless steel 316TI Do a quotationarray(9) { ["pa_bestelnummer"]=> string(17) "0413-2003-0610-en" ["omschrijving"]=> string(13) "GE08 LL M10x1" ["pa_d"]=> string(4) "6-en" ["pa_serie"]=> string(5) "ll-en" ["g"]=> string(9) "M10x1 con" ["pa_sw1"]=> string(5) "11-en" ["pa_sw2"]=> string(5) "12-en" ["l1"]=> string(2) "26" ["pa_materiaal"]=> string(24) "stainless-steel-316ti-en" }
0413-2004-0610 GE06 LL M10x1 CYL 6 LL M10x1 cyl 14 12 30 Stainless steel 316TI Do a quotationarray(9) { ["pa_bestelnummer"]=> string(17) "0413-2004-0610-en" ["omschrijving"]=> string(17) "GE06 LL M10x1 CYL" ["pa_d"]=> string(4) "6-en" ["pa_serie"]=> string(5) "ll-en" ["g"]=> string(9) "M10x1 cyl" ["pa_sw1"]=> string(5) "14-en" ["pa_sw2"]=> string(5) "12-en" ["l1"]=> string(2) "30" ["pa_materiaal"]=> string(24) "stainless-steel-316ti-en" }
0413-2103-0602 GE06 LL R1/8 6 LL R1/8 BSP con 11 12 28 Stainless steel 316TI Do a quotationarray(9) { ["pa_bestelnummer"]=> string(17) "0413-2103-0602-en" ["omschrijving"]=> string(12) "GE06 LL R1/8" ["pa_d"]=> string(4) "6-en" ["pa_serie"]=> string(5) "ll-en" ["g"]=> string(12) "R1/8 BSP con" ["pa_sw1"]=> string(5) "11-en" ["pa_sw2"]=> string(5) "12-en" ["l1"]=> string(2) "28" ["pa_materiaal"]=> string(24) "stainless-steel-316ti-en" }
0413-2104-0602 GE06 LL R1/8 CYL 6 LL R1/8 BSP cyl 14 12 29,5 Stainless steel 316TI Do a quotationarray(9) { ["pa_bestelnummer"]=> string(17) "0413-2104-0602-en" ["omschrijving"]=> string(16) "GE06 LL R1/8 CYL" ["pa_d"]=> string(4) "6-en" ["pa_serie"]=> string(5) "ll-en" ["g"]=> string(12) "R1/8 BSP cyl" ["pa_sw1"]=> string(5) "14-en" ["pa_sw2"]=> string(5) "12-en" ["l1"]=> string(4) "29,5" ["pa_materiaal"]=> string(24) "stainless-steel-316ti-en" }
0413-2023-0610 GE06 L M10x1 6 L M10x1 cyl 14 14 34 Stainless steel 316TI Do a quotationarray(9) { ["pa_bestelnummer"]=> string(17) "0413-2023-0610-en" ["omschrijving"]=> string(12) "GE06 L M10x1" ["pa_d"]=> string(4) "6-en" ["pa_serie"]=> string(4) "l-en" ["g"]=> string(9) "M10x1 cyl" ["pa_sw1"]=> string(5) "14-en" ["pa_sw2"]=> string(5) "14-en" ["l1"]=> string(2) "34" ["pa_materiaal"]=> string(24) "stainless-steel-316ti-en" }
0413-2003-0806 GE08 LL M6x1 8 LL M6x1 con 12 14 30 Stainless steel 316TI Do a quotationarray(9) { ["pa_bestelnummer"]=> string(17) "0413-2003-0806-en" ["omschrijving"]=> string(12) "GE08 LL M6x1" ["pa_d"]=> string(4) "8-en" ["pa_serie"]=> string(5) "ll-en" ["g"]=> string(8) "M6x1 con" ["pa_sw1"]=> string(5) "12-en" ["pa_sw2"]=> string(5) "14-en" ["l1"]=> string(2) "30" ["pa_materiaal"]=> string(24) "stainless-steel-316ti-en" }
0413-2003-0808 GE08 LL M8x1 8 LL M8x1 con 12 14 30 Stainless steel 316TI Do a quotationarray(9) { ["pa_bestelnummer"]=> string(17) "0413-2003-0808-en" ["omschrijving"]=> string(12) "GE08 LL M8x1" ["pa_d"]=> string(4) "8-en" ["pa_serie"]=> string(5) "ll-en" ["g"]=> string(8) "M8x1 con" ["pa_sw1"]=> string(5) "12-en" ["pa_sw2"]=> string(5) "14-en" ["l1"]=> string(2) "30" ["pa_materiaal"]=> string(24) "stainless-steel-316ti-en" }
0413-2003-0810 GE08 LL M10x1 8 LL M10x1 con 12 14 30 Stainless steel 316TI Do a quotationarray(9) { ["pa_bestelnummer"]=> string(17) "0413-2003-0810-en" ["omschrijving"]=> string(13) "GE08 LL M10x1" ["pa_d"]=> string(4) "8-en" ["pa_serie"]=> string(5) "ll-en" ["g"]=> string(9) "M10x1 con" ["pa_sw1"]=> string(5) "12-en" ["pa_sw2"]=> string(5) "14-en" ["l1"]=> string(2) "30" ["pa_materiaal"]=> string(24) "stainless-steel-316ti-en" }
0413-2103-0802 GE08 LL R1/8 8 LL R1/8 BSP con 12 14 30 Stainless steel 316TI Do a quotationarray(9) { ["pa_bestelnummer"]=> string(17) "0413-2103-0802-en" ["omschrijving"]=> string(12) "GE08 LL R1/8" ["pa_d"]=> string(4) "8-en" ["pa_serie"]=> string(5) "ll-en" ["g"]=> string(12) "R1/8 BSP con" ["pa_sw1"]=> string(5) "12-en" ["pa_sw2"]=> string(5) "14-en" ["l1"]=> string(2) "30" ["pa_materiaal"]=> string(24) "stainless-steel-316ti-en" }
0413-2104-0802 GE08 LL R1/8 CYL 8 LL R1/8 BSP cyl 12 14 30 Stainless steel 316TI Do a quotationarray(9) { ["pa_bestelnummer"]=> string(17) "0413-2104-0802-en" ["omschrijving"]=> string(16) "GE08 LL R1/8 CYL" ["pa_d"]=> string(4) "8-en" ["pa_serie"]=> string(5) "ll-en" ["g"]=> string(12) "R1/8 BSP cyl" ["pa_sw1"]=> string(5) "12-en" ["pa_sw2"]=> string(5) "14-en" ["l1"]=> string(2) "30" ["pa_materiaal"]=> string(24) "stainless-steel-316ti-en" }
0413-2023-0810 GE08 L M10x1 8 L M10x1 cyl 14 16 35 Stainless steel 316TI Do a quotationarray(9) { ["pa_bestelnummer"]=> string(17) "0413-2023-0810-en" ["omschrijving"]=> string(12) "GE08 L M10x1" ["pa_d"]=> string(4) "8-en" ["pa_serie"]=> string(4) "l-en" ["g"]=> string(9) "M10x1 cyl" ["pa_sw1"]=> string(5) "14-en" ["pa_sw2"]=> string(2) "16" ["l1"]=> string(2) "35" ["pa_materiaal"]=> string(24) "stainless-steel-316ti-en" }
