GE Rechte inschroefkoppeling Metrische buitendraad, cylindrisch * Rubber afdichting

string(152) "https://www.hydynamic.nl/wp-content/uploads/product_pdfs/diversen-2/ge-rechte-inschroefkoppeling-metrische-buitendraad-cylindrisch-rubber-afdichting.pdf"
string(176) "/home/hydynamic/domains/hydynamic.nl/public_html/wp-content/uploads/product_pdfs/diversen-2/ge-rechte-inschroefkoppeling-metrische-buitendraad-cylindrisch-rubber-afdichting.pdf"

Variations:

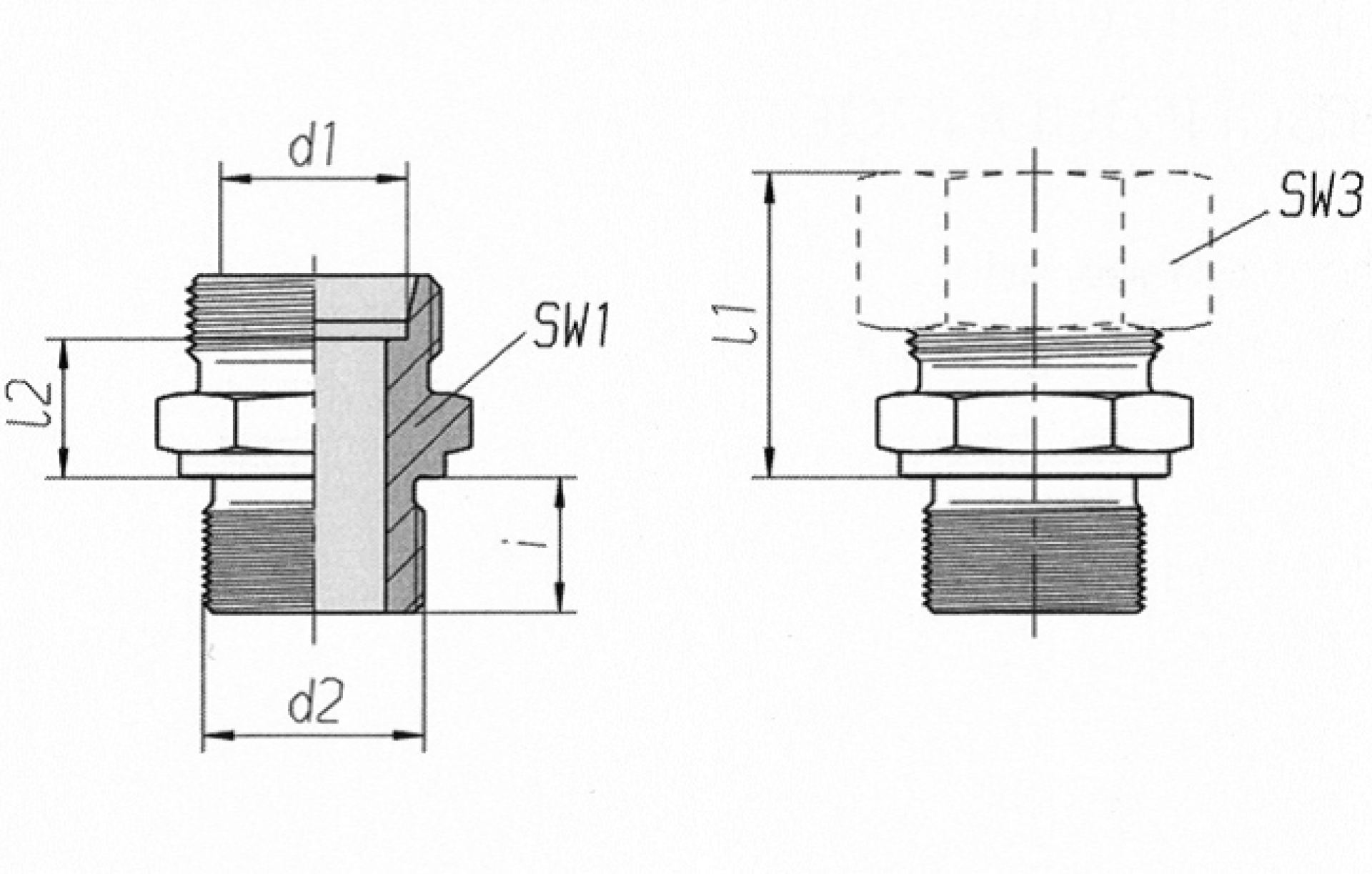

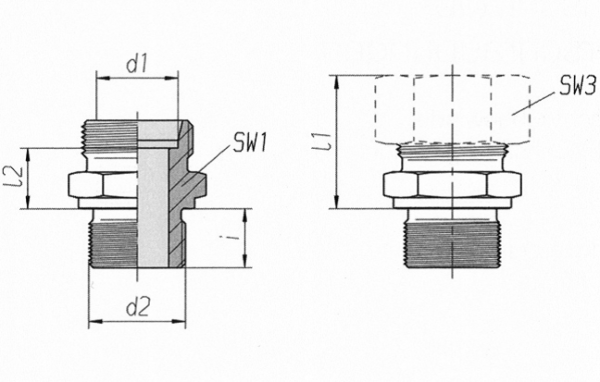

Partnr Draad d2 (mm) Druk (bar) I (mm) I1 ca_ (mm) I2 Nm -10% Description Pijpopname d1 (mm) SW1 SW3
0414-0023-0610 M10x1 500 8 23 8,5 15 GE6LM10ED L6 14 14 Do a quotationarray(11) { ["pa_bestelnummer"]=> string(14) "0414-0023-0610" ["pa_draad-d2-mm"]=> string(5) "m10x1" ["pa_druk-bar"]=> string(3) "500" ["pa_i-mm"]=> string(1) "8" ["pa_i1-ca_-mm"]=> string(2) "23" ["pa_i2"]=> string(2) "85" ["pa_nm-10"]=> string(2) "15" ["pa_omschrijving"]=> string(9) "ge6lm10ed" ["pa_pijpopname-d1-mm"]=> string(2) "l6" ["pa_sw1"]=> string(5) "14-en" ["pa_sw3"]=> string(5) "14-en" }
0414-0023-0814 M14x1,5 500 12 25 10 50 GE8LM14ED L8 19 17 Do a quotationarray(11) { ["pa_bestelnummer"]=> string(14) "0414-0023-0814" ["pa_draad-d2-mm"]=> string(6) "m14x15" ["pa_druk-bar"]=> string(3) "500" ["pa_i-mm"]=> string(2) "12" ["pa_i1-ca_-mm"]=> string(2) "25" ["pa_i2"]=> string(2) "10" ["pa_nm-10"]=> string(2) "50" ["pa_omschrijving"]=> string(9) "ge8lm14ed" ["pa_pijpopname-d1-mm"]=> string(2) "l8" ["pa_sw1"]=> string(5) "19-en" ["pa_sw3"]=> string(5) "17-en" }
0414-0023-0816 M16x1,5 400 12 26,5 11,5 70 GE8LM16ED L8 22 17 Do a quotationarray(11) { ["pa_bestelnummer"]=> string(14) "0414-0023-0816" ["pa_draad-d2-mm"]=> string(6) "m16x15" ["pa_druk-bar"]=> string(3) "400" ["pa_i-mm"]=> string(2) "12" ["pa_i1-ca_-mm"]=> string(3) "265" ["pa_i2"]=> string(3) "115" ["pa_nm-10"]=> string(2) "70" ["pa_omschrijving"]=> string(9) "ge8lm16ed" ["pa_pijpopname-d1-mm"]=> string(2) "l8" ["pa_sw1"]=> string(5) "22-en" ["pa_sw3"]=> string(5) "17-en" }
0414-0023-1012 M12x1,5 500 12 26 11 25 GE10LM12ED L10 17 19 Do a quotationarray(11) { ["pa_bestelnummer"]=> string(14) "0414-0023-1012" ["pa_draad-d2-mm"]=> string(6) "m12x15" ["pa_druk-bar"]=> string(3) "500" ["pa_i-mm"]=> string(2) "12" ["pa_i1-ca_-mm"]=> string(2) "26" ["pa_i2"]=> string(2) "11" ["pa_nm-10"]=> string(2) "25" ["pa_omschrijving"]=> string(10) "ge10lm12ed" ["pa_pijpopname-d1-mm"]=> string(3) "l10" ["pa_sw1"]=> string(5) "17-en" ["pa_sw3"]=> string(5) "19-en" }
0414-0023-1014 M14x1,5 500 12 26 11 50 GE10LM14ED L10 19 19 Do a quotationarray(11) { ["pa_bestelnummer"]=> string(14) "0414-0023-1014" ["pa_draad-d2-mm"]=> string(6) "m14x15" ["pa_druk-bar"]=> string(3) "500" ["pa_i-mm"]=> string(2) "12" ["pa_i1-ca_-mm"]=> string(2) "26" ["pa_i2"]=> string(2) "11" ["pa_nm-10"]=> string(2) "50" ["pa_omschrijving"]=> string(10) "ge10lm14ed" ["pa_pijpopname-d1-mm"]=> string(3) "l10" ["pa_sw1"]=> string(5) "19-en" ["pa_sw3"]=> string(5) "19-en" }
0414-0023-1016 M16x1,5 400 12 27,5 12,5 70 GE10LM16ED L10 22 19 Do a quotationarray(11) { ["pa_bestelnummer"]=> string(14) "0414-0023-1016" ["pa_draad-d2-mm"]=> string(6) "m16x15" ["pa_druk-bar"]=> string(3) "400" ["pa_i-mm"]=> string(2) "12" ["pa_i1-ca_-mm"]=> string(3) "275" ["pa_i2"]=> string(3) "125" ["pa_nm-10"]=> string(2) "70" ["pa_omschrijving"]=> string(10) "ge10lm16ed" ["pa_pijpopname-d1-mm"]=> string(3) "l10" ["pa_sw1"]=> string(5) "22-en" ["pa_sw3"]=> string(5) "19-en" }
0414-0023-1018 M18x1,5 400 12 27,5 12,5 90 GE10LM18ED L10 24 19 Do a quotationarray(11) { ["pa_bestelnummer"]=> string(14) "0414-0023-1018" ["pa_draad-d2-mm"]=> string(6) "m18x15" ["pa_druk-bar"]=> string(3) "400" ["pa_i-mm"]=> string(2) "12" ["pa_i1-ca_-mm"]=> string(3) "275" ["pa_i2"]=> string(3) "125" ["pa_nm-10"]=> string(2) "90" ["pa_omschrijving"]=> string(10) "ge10lm18ed" ["pa_pijpopname-d1-mm"]=> string(3) "l10" ["pa_sw1"]=> string(5) "24-en" ["pa_sw3"]=> string(5) "19-en" }
0414-0023-1022 M22x1,5 400 14 29 14 130 GE10LM22ED L10 27 19 Do a quotationarray(11) { ["pa_bestelnummer"]=> string(14) "0414-0023-1022" ["pa_draad-d2-mm"]=> string(6) "m22x15" ["pa_druk-bar"]=> string(3) "400" ["pa_i-mm"]=> string(2) "14" ["pa_i1-ca_-mm"]=> string(2) "29" ["pa_i2"]=> string(2) "14" ["pa_nm-10"]=> string(3) "130" ["pa_omschrijving"]=> string(10) "ge10lm22ed" ["pa_pijpopname-d1-mm"]=> string(3) "l10" ["pa_sw1"]=> string(2) "27" ["pa_sw3"]=> string(5) "19-en" }
0414-0023-1210 M10x1 400 8 26,5 12 15 GE12LM10ED L12 19 22 Do a quotationarray(11) { ["pa_bestelnummer"]=> string(14) "0414-0023-1210" ["pa_draad-d2-mm"]=> string(5) "m10x1" ["pa_druk-bar"]=> string(3) "400" ["pa_i-mm"]=> string(1) "8" ["pa_i1-ca_-mm"]=> string(3) "265" ["pa_i2"]=> string(2) "12" ["pa_nm-10"]=> string(2) "15" ["pa_omschrijving"]=> string(10) "ge12lm10ed" ["pa_pijpopname-d1-mm"]=> string(3) "l12" ["pa_sw1"]=> string(5) "19-en" ["pa_sw3"]=> string(5) "22-en" }
0414-0023-1212 M12x1,5 400 12 27 12,5 25 GE12LM12ED L12 19 22 Do a quotationarray(11) { ["pa_bestelnummer"]=> string(14) "0414-0023-1212" ["pa_draad-d2-mm"]=> string(6) "m12x15" ["pa_druk-bar"]=> string(3) "400" ["pa_i-mm"]=> string(2) "12" ["pa_i1-ca_-mm"]=> string(2) "27" ["pa_i2"]=> string(3) "125" ["pa_nm-10"]=> string(2) "25" ["pa_omschrijving"]=> string(10) "ge12lm12ed" ["pa_pijpopname-d1-mm"]=> string(3) "l12" ["pa_sw1"]=> string(5) "19-en" ["pa_sw3"]=> string(5) "22-en" }
0414-0023-1214 M14x1,5 400 12 25,5 11 50 GE12LM14ED L12 19 22 Do a quotationarray(11) { ["pa_bestelnummer"]=> string(14) "0414-0023-1214" ["pa_draad-d2-mm"]=> string(6) "m14x15" ["pa_druk-bar"]=> string(3) "400" ["pa_i-mm"]=> string(2) "12" ["pa_i1-ca_-mm"]=> string(3) "255" ["pa_i2"]=> string(2) "11" ["pa_nm-10"]=> string(2) "50" ["pa_omschrijving"]=> string(10) "ge12lm14ed" ["pa_pijpopname-d1-mm"]=> string(3) "l12" ["pa_sw1"]=> string(5) "19-en" ["pa_sw3"]=> string(5) "22-en" }
0414-0023-1218 M18x1,5 400 12 27 12,5 90 GE12LM18ED L12 24 22 Do a quotationarray(11) { ["pa_bestelnummer"]=> string(14) "0414-0023-1218" ["pa_draad-d2-mm"]=> string(6) "m18x15" ["pa_druk-bar"]=> string(3) "400" ["pa_i-mm"]=> string(2) "12" ["pa_i1-ca_-mm"]=> string(2) "27" ["pa_i2"]=> string(3) "125" ["pa_nm-10"]=> string(2) "90" ["pa_omschrijving"]=> string(10) "ge12lm18ed" ["pa_pijpopname-d1-mm"]=> string(3) "l12" ["pa_sw1"]=> string(5) "24-en" ["pa_sw3"]=> string(5) "22-en" }
0414-0023-1222 M22x1,5 400 14 28,5 14 130 GE12LM22ED L12 27 22 Do a quotationarray(11) { ["pa_bestelnummer"]=> string(14) "0414-0023-1222" ["pa_draad-d2-mm"]=> string(6) "m22x15" ["pa_druk-bar"]=> string(3) "400" ["pa_i-mm"]=> string(2) "14" ["pa_i1-ca_-mm"]=> string(3) "285" ["pa_i2"]=> string(2) "14" ["pa_nm-10"]=> string(3) "130" ["pa_omschrijving"]=> string(10) "ge12lm22ed" ["pa_pijpopname-d1-mm"]=> string(3) "l12" ["pa_sw1"]=> string(2) "27" ["pa_sw3"]=> string(5) "22-en" }
0414-0023-1516 M16x1,5 400 12 28 13 70 GE15LM16ED L15 24 27 Do a quotationarray(11) { ["pa_bestelnummer"]=> string(14) "0414-0023-1516" ["pa_draad-d2-mm"]=> string(6) "m16x15" ["pa_druk-bar"]=> string(3) "400" ["pa_i-mm"]=> string(2) "12" ["pa_i1-ca_-mm"]=> string(2) "28" ["pa_i2"]=> string(2) "13" ["pa_nm-10"]=> string(2) "70" ["pa_omschrijving"]=> string(10) "ge15lm16ed" ["pa_pijpopname-d1-mm"]=> string(3) "l15" ["pa_sw1"]=> string(5) "24-en" ["pa_sw3"]=> string(2) "27" }
0414-0023-1518 M18x1,5 400 12 28,5 13,5 90 GE15LM18ED L15 24 27 Do a quotationarray(11) { ["pa_bestelnummer"]=> string(14) "0414-0023-1518" ["pa_draad-d2-mm"]=> string(6) "m18x15" ["pa_druk-bar"]=> string(3) "400" ["pa_i-mm"]=> string(2) "12" ["pa_i1-ca_-mm"]=> string(3) "285" ["pa_i2"]=> string(3) "135" ["pa_nm-10"]=> string(2) "90" ["pa_omschrijving"]=> string(10) "ge15lm18ed" ["pa_pijpopname-d1-mm"]=> string(3) "l15" ["pa_sw1"]=> string(5) "24-en" ["pa_sw3"]=> string(2) "27" }
0414-0023-1522 M22x1,5 400 14 30 15 130 GE15LM22ED L15 27 27 Do a quotationarray(11) { ["pa_bestelnummer"]=> string(14) "0414-0023-1522" ["pa_draad-d2-mm"]=> string(6) "m22x15" ["pa_druk-bar"]=> string(3) "400" ["pa_i-mm"]=> string(2) "14" ["pa_i1-ca_-mm"]=> string(2) "30" ["pa_i2"]=> string(2) "15" ["pa_nm-10"]=> string(3) "130" ["pa_omschrijving"]=> string(10) "ge15lm22ed" ["pa_pijpopname-d1-mm"]=> string(3) "l15" ["pa_sw1"]=> string(2) "27" ["pa_sw3"]=> string(2) "27" }
0414-0023-1526 M26x1,5 250 16 30 15 180 GE15LM26ED L15 32 27 Do a quotationarray(11) { ["pa_bestelnummer"]=> string(14) "0414-0023-1526" ["pa_draad-d2-mm"]=> string(6) "m26x15" ["pa_druk-bar"]=> string(3) "250" ["pa_i-mm"]=> string(2) "16" ["pa_i1-ca_-mm"]=> string(2) "30" ["pa_i2"]=> string(2) "15" ["pa_nm-10"]=> string(3) "180" ["pa_omschrijving"]=> string(10) "ge15lm26ed" ["pa_pijpopname-d1-mm"]=> string(3) "l15" ["pa_sw1"]=> string(2) "32" ["pa_sw3"]=> string(2) "27" }
0414-0023-1818 M18x1,5 400 12 30,5 14 90 GE18LM18ED L18 27 32 Do a quotationarray(11) { ["pa_bestelnummer"]=> string(14) "0414-0023-1818" ["pa_draad-d2-mm"]=> string(6) "m18x15" ["pa_druk-bar"]=> string(3) "400" ["pa_i-mm"]=> string(2) "12" ["pa_i1-ca_-mm"]=> string(3) "305" ["pa_i2"]=> string(2) "14" ["pa_nm-10"]=> string(2) "90" ["pa_omschrijving"]=> string(10) "ge18lm18ed" ["pa_pijpopname-d1-mm"]=> string(3) "l18" ["pa_sw1"]=> string(2) "27" ["pa_sw3"]=> string(2) "32" }
0414-0023-1822 M22x1,5 400 14 31 14,5 130 GE18LM22ED L18 27 32 Do a quotationarray(11) { ["pa_bestelnummer"]=> string(14) "0414-0023-1822" ["pa_draad-d2-mm"]=> string(6) "m22x15" ["pa_druk-bar"]=> string(3) "400" ["pa_i-mm"]=> string(2) "14" ["pa_i1-ca_-mm"]=> string(2) "31" ["pa_i2"]=> string(3) "145" ["pa_nm-10"]=> string(3) "130" ["pa_omschrijving"]=> string(10) "ge18lm22ed" ["pa_pijpopname-d1-mm"]=> string(3) "l18" ["pa_sw1"]=> string(2) "27" ["pa_sw3"]=> string(2) "32" }
0414-0023-1826 M26x1,5 250 16 31 14,5 180 GE18LM26ED L18 32 32 Do a quotationarray(11) { ["pa_bestelnummer"]=> string(14) "0414-0023-1826" ["pa_draad-d2-mm"]=> string(6) "m26x15" ["pa_druk-bar"]=> string(3) "250" ["pa_i-mm"]=> string(2) "16" ["pa_i1-ca_-mm"]=> string(2) "31" ["pa_i2"]=> string(3) "145" ["pa_nm-10"]=> string(3) "180" ["pa_omschrijving"]=> string(10) "ge18lm26ed" ["pa_pijpopname-d1-mm"]=> string(3) "l18" ["pa_sw1"]=> string(2) "32" ["pa_sw3"]=> string(2) "32" }
0414-0023-216 M16x1,5 400 12 27 12,5 70 GE12LM16ED L12 22 22 Do a quotationarray(11) { ["pa_bestelnummer"]=> string(13) "0414-0023-216" ["pa_draad-d2-mm"]=> string(6) "m16x15" ["pa_druk-bar"]=> string(3) "400" ["pa_i-mm"]=> string(2) "12" ["pa_i1-ca_-mm"]=> string(2) "27" ["pa_i2"]=> string(3) "125" ["pa_nm-10"]=> string(2) "70" ["pa_omschrijving"]=> string(10) "ge12lm16ed" ["pa_pijpopname-d1-mm"]=> string(3) "l12" ["pa_sw1"]=> string(5) "22-en" ["pa_sw3"]=> string(5) "22-en" }
0414-0023-2222 M22x1,5 250 14 33 16,5 130 GE22LM22ED L22 32 36 Do a quotationarray(11) { ["pa_bestelnummer"]=> string(14) "0414-0023-2222" ["pa_draad-d2-mm"]=> string(6) "m22x15" ["pa_druk-bar"]=> string(3) "250" ["pa_i-mm"]=> string(2) "14" ["pa_i1-ca_-mm"]=> string(2) "33" ["pa_i2"]=> string(3) "165" ["pa_nm-10"]=> string(3) "130" ["pa_omschrijving"]=> string(10) "ge22lm22ed" ["pa_pijpopname-d1-mm"]=> string(3) "l22" ["pa_sw1"]=> string(2) "32" ["pa_sw3"]=> string(2) "36" }
0414-0023-2226 M26x1,5 250 16 33 16,5 180 GE22LM26ED L22 32 36 Do a quotationarray(11) { ["pa_bestelnummer"]=> string(14) "0414-0023-2226" ["pa_draad-d2-mm"]=> string(6) "m26x15" ["pa_druk-bar"]=> string(3) "250" ["pa_i-mm"]=> string(2) "16" ["pa_i1-ca_-mm"]=> string(2) "33" ["pa_i2"]=> string(3) "165" ["pa_nm-10"]=> string(3) "180" ["pa_omschrijving"]=> string(10) "ge22lm26ed" ["pa_pijpopname-d1-mm"]=> string(3) "l22" ["pa_sw1"]=> string(2) "32" ["pa_sw3"]=> string(2) "36" }
0414-0023-2233 M33x2 250 18 34 17,5 230 GE22LM33ED L22 41 36 Do a quotationarray(11) { ["pa_bestelnummer"]=> string(14) "0414-0023-2233" ["pa_draad-d2-mm"]=> string(5) "m33x2" ["pa_druk-bar"]=> string(3) "250" ["pa_i-mm"]=> string(2) "18" ["pa_i1-ca_-mm"]=> string(2) "34" ["pa_i2"]=> string(3) "175" ["pa_nm-10"]=> string(3) "230" ["pa_omschrijving"]=> string(10) "ge22lm33ed" ["pa_pijpopname-d1-mm"]=> string(3) "l22" ["pa_sw1"]=> string(2) "41" ["pa_sw3"]=> string(2) "36" }
0414-0023-2826 M26x1,5 250 16 36 19,5 180 GE28LM26ED L28 41 41 Do a quotationarray(11) { ["pa_bestelnummer"]=> string(14) "0414-0023-2826" ["pa_draad-d2-mm"]=> string(6) "m26x15" ["pa_druk-bar"]=> string(3) "250" ["pa_i-mm"]=> string(2) "16" ["pa_i1-ca_-mm"]=> string(2) "36" ["pa_i2"]=> string(3) "195" ["pa_nm-10"]=> string(3) "180" ["pa_omschrijving"]=> string(10) "ge28lm26ed" ["pa_pijpopname-d1-mm"]=> string(3) "l28" ["pa_sw1"]=> string(2) "41" ["pa_sw3"]=> string(2) "41" }
0414-0023-2833 M33x2 250 18 34 17,5 230 GE28LM33ED L28 41 41 Do a quotationarray(11) { ["pa_bestelnummer"]=> string(14) "0414-0023-2833" ["pa_draad-d2-mm"]=> string(5) "m33x2" ["pa_druk-bar"]=> string(3) "250" ["pa_i-mm"]=> string(2) "18" ["pa_i1-ca_-mm"]=> string(2) "34" ["pa_i2"]=> string(3) "175" ["pa_nm-10"]=> string(3) "230" ["pa_omschrijving"]=> string(10) "ge28lm33ed" ["pa_pijpopname-d1-mm"]=> string(3) "l28" ["pa_sw1"]=> string(2) "41" ["pa_sw3"]=> string(2) "41" }
0414-0023-2842 M42x2 250 20 36 19,5 330 GE28LM42ED L28 50 41 Do a quotationarray(11) { ["pa_bestelnummer"]=> string(14) "0414-0023-2842" ["pa_draad-d2-mm"]=> string(5) "m42x2" ["pa_druk-bar"]=> string(3) "250" ["pa_i-mm"]=> string(2) "20" ["pa_i1-ca_-mm"]=> string(2) "36" ["pa_i2"]=> string(3) "195" ["pa_nm-10"]=> string(3) "330" ["pa_omschrijving"]=> string(10) "ge28lm42ed" ["pa_pijpopname-d1-mm"]=> string(3) "l28" ["pa_sw1"]=> string(2) "50" ["pa_sw3"]=> string(2) "41" }
0414-0023-3533 M33x2 250 18 39 17,5 230 GE35LM33ED L35 46 50 Do a quotationarray(11) { ["pa_bestelnummer"]=> string(14) "0414-0023-3533" ["pa_draad-d2-mm"]=> string(5) "m33x2" ["pa_druk-bar"]=> string(3) "250" ["pa_i-mm"]=> string(2) "18" ["pa_i1-ca_-mm"]=> string(2) "39" ["pa_i2"]=> string(3) "175" ["pa_nm-10"]=> string(3) "230" ["pa_omschrijving"]=> string(10) "ge35lm33ed" ["pa_pijpopname-d1-mm"]=> string(3) "l35" ["pa_sw1"]=> string(2) "46" ["pa_sw3"]=> string(2) "50" }
0414-0023-3542 M42x2 250 20 39 17,5 330 GE35LM42ED L35 50 50 Do a quotationarray(11) { ["pa_bestelnummer"]=> string(14) "0414-0023-3542" ["pa_draad-d2-mm"]=> string(5) "m42x2" ["pa_druk-bar"]=> string(3) "250" ["pa_i-mm"]=> string(2) "20" ["pa_i1-ca_-mm"]=> string(2) "39" ["pa_i2"]=> string(3) "175" ["pa_nm-10"]=> string(3) "330" ["pa_omschrijving"]=> string(10) "ge35lm42ed" ["pa_pijpopname-d1-mm"]=> string(3) "l35" ["pa_sw1"]=> string(2) "50" ["pa_sw3"]=> string(2) "50" }
0414-0023-4242 M42x2 250 20 42 19 330 GE42LM42ED L42 55 60 Do a quotationarray(11) { ["pa_bestelnummer"]=> string(14) "0414-0023-4242" ["pa_draad-d2-mm"]=> string(5) "m42x2" ["pa_druk-bar"]=> string(3) "250" ["pa_i-mm"]=> string(2) "20" ["pa_i1-ca_-mm"]=> string(2) "42" ["pa_i2"]=> string(2) "19" ["pa_nm-10"]=> string(3) "330" ["pa_omschrijving"]=> string(10) "ge42lm42ed" ["pa_pijpopname-d1-mm"]=> string(3) "l42" ["pa_sw1"]=> string(2) "55" ["pa_sw3"]=> string(2) "60" }
0414-0023-4248 M48x2 250 22 42 19 500 GE42LM48ED L42 55 60 Do a quotationarray(11) { ["pa_bestelnummer"]=> string(14) "0414-0023-4248" ["pa_draad-d2-mm"]=> string(5) "m48x2" ["pa_druk-bar"]=> string(3) "250" ["pa_i-mm"]=> string(2) "22" ["pa_i1-ca_-mm"]=> string(2) "42" ["pa_i2"]=> string(2) "19" ["pa_nm-10"]=> string(3) "500" ["pa_omschrijving"]=> string(10) "ge42lm48ed" ["pa_pijpopname-d1-mm"]=> string(3) "l42" ["pa_sw1"]=> string(2) "55" ["pa_sw3"]=> string(2) "60" }
